Product Description
We feel proud to introduce ourselves as the foremost manufacturer, exporter and supplier of an effective range of Flow and Batch Controller. It finds wide applications in chemical, pharmaceutical, cement, sugar, food and many other industries. This controller is robust, compact and reliable. Its simple calibration system ensures maximum accuracy and functionality. Further, it provides automatic control for cyclic liquid fill operations. Clients can avail this Flow and Batch Controller from us at very nominal rates.

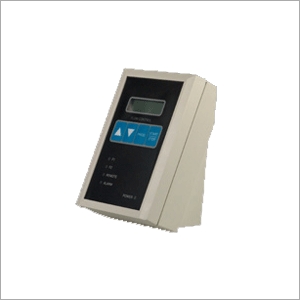

The S601 is a professional, solid batch and flow controller, that can be used as a monitor and/or totalisor. The distinctive features are- The extremely simple operation
- The very attractive and compact design
- Clearly legible display
- Audible buzzer
- Various casings (synthetic, aluminum, stainless steel)
- RS232 serial gate (Profibus as option)
- PID control
- High accuracy through automatic lagging compensation and adjustable damping factor
Flexible in applications
The requested configuration can be determined easily by selecting the push button codes. After pushing the buttons in the selected code, the S601 is changed from batch controller into flow controller or monitor or vice versa. The following functions are available
| Filling 2 liquids simultaneously | Dosing and filling of preset volumes |
| Filling 2 liquids sequentially | Dosing and filling of preset volumes |
| Batch to main stream | Flow-proportional dosing in batches to a main stream |
| Batch in time | Dosing in batches with an adjustable time interval |
| Flow process | Flow control for one liquid |
| Proportional mixing | Flow-proportional/in percentage/continuous dosing to a main stream |
| Monitoring + totalising | Flow monitoring with totalising |
| Pump control | control of the pump operation |
Technical Specifications
| Power supply | 24 VDC |
| Dimensions | 140 x 220 x 72 mm (WxHxD) |
| Casing | High grade synthetic; others on request |
| Environment Temp. | - 10 up to +70 degree C |
| Type of enclosure | IP65 |
| Display | 2 x 16 digits |
| Input signals | 2 x flow meters, pulse max. 5 KHz. |
| 3 x analogue (0-10V), 1 x analogue (4-20mA) |
| external control for Alarm/Start-Stop/Up-Down |
| Output signals | 1 x analogue, 0 - 10 V |
| 1 x analogue, 4 - 20 mA |
| 2 x valve or pump |
| 1 x alarm, 1 x reject |
| 3 x spare |
