Product Description

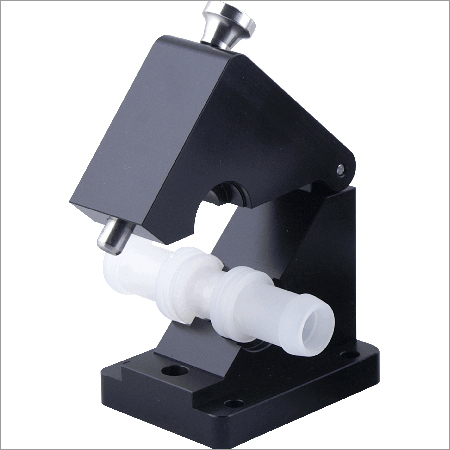

With years of experience and industry knowledge, we have been able to offer our clients PFA Disposable Flow Meter with the facility of infra red reflection measurement. Designed to perform a fast exchange of the flow tube for hygienic reasons, this flow meter is suitable for clear and opaque, neutral, corrosive and aggressive liquids, fuel and also for periodic monitoring. An easy-to-remove housing is placed around the tube for measurement and calibration. This PFA Disposable Flow Meter is available in different models as per the different industrial needs.
Complies with US Pharmacopeia Class VI requirements
| Flow meter characteristics | - High resolution, proportional to the flow - Highly chemical resistant - Splendid accuracy and repeatability - Can be used for opaque liquids - Pulse output free programmable |
| Technical specifications of the flow meter | - All wetted parts made of PTFE ® / PFA with Ruby Bearing - High resolution, flow meter type 4.5 = 110,000 imp/ litre - Infra red reflection flow measurement - Flow tube can be sterilized up to 160oC - Flow meter range in L/min: 0.06 - 2 / 0.5 - 20 / 1.5 - 40 - Viscosity range: 0.8 - 10 mm2 / Sec - Temperature range: -20 - + 80oC - Operating pressure: 0 - 20 bar - Repeatability: < 0.15% - Power supply: 5 - 30 Vdc 35 mA bij 5 Volt - Output signal: square wave - Enclosure: IP65 - Connections: BSP / NPT / Hose |
| Options | - 6100 DA converter 0-20 mA / 4-20 mA / 0-5 Vdc / 0-10 Vdc - 6300 Power switch for flow switch- and batch functions - S601 Batch controller - S601-F Flow controller - Additional cable mount electronics for |
PFA / PTFE ®
| Flow meter | Flow range | Pulses | Repeatability | Maximum | Connection | Conn. |
| model | lpm | litre | % | pressure | thread | hose |
| 0045 | 0.06 - 2 | 110,000 | 0.15 | 20 bar | 1/8" NPT | 7 mm |
| 0085 | 0.5 - 20 | 6350 | 0.15 | 15 bar | 1/4" NPT | 12 mm |
